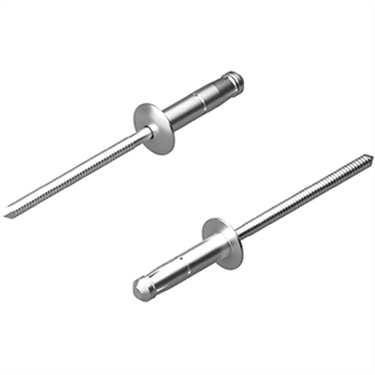

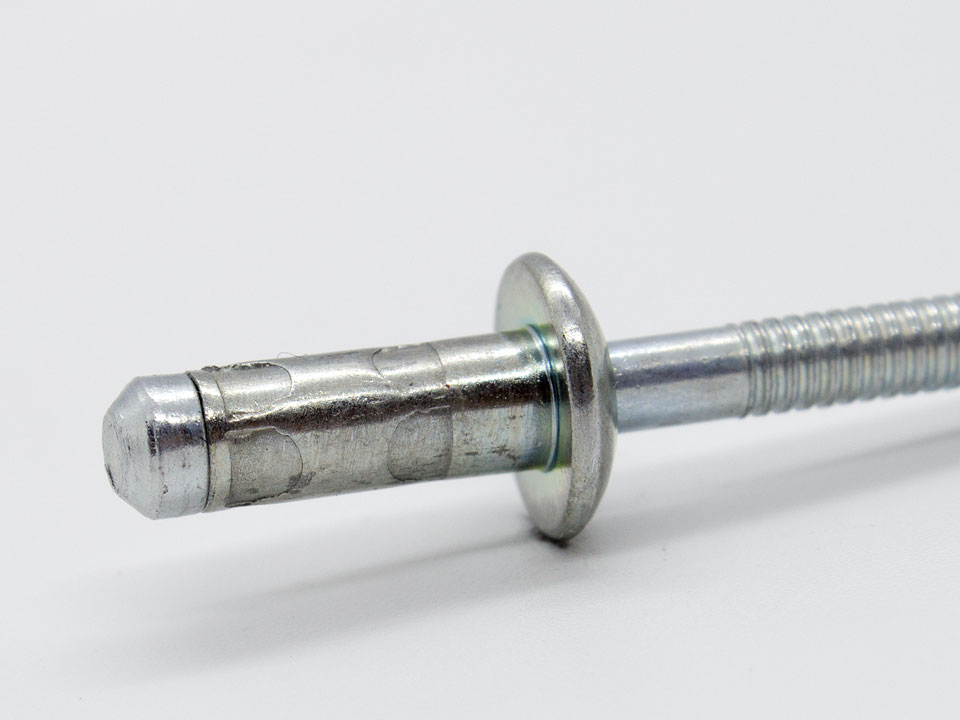

Stelock Rivet is a high strength structural fastener with excellent bulb tail formation. It provides a high strength, vibration resistant connection. It is an ideal solution for thin, brittle and soft materials.
 Diameter |
Serial Number | Grip Range(mm) | Length(mm) | Shear(N) | Tensile(N) |
|---|---|---|---|---|---|
| 4.8 | 01.082211.48113 | 3.5 – 6 | 11.3 | 2.900 | 5.600 |
| 01.082211.48143 | 6 – 8.5 | 14.3 | 3.800 | 5.700 | |
| 6.0 | 01.082211.60100 | 1 – 4 | 10.0 | 5.500 | 4.800 |
| 01.082211.60130 | 3.5 – 6 | 13.0 | 5.900 | ||
| 01.082211.60160 | 6 – 9 | 16.0 | 8.600 | ||
| 01.082211.60190 | 9 – 12 | 19.0 | 9.600 |
