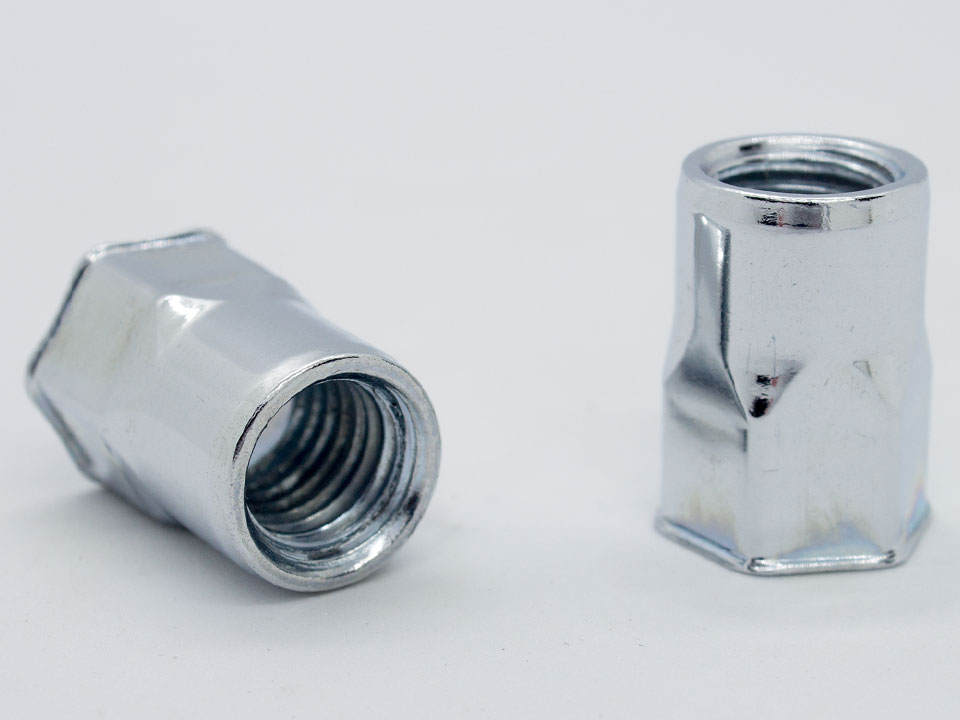

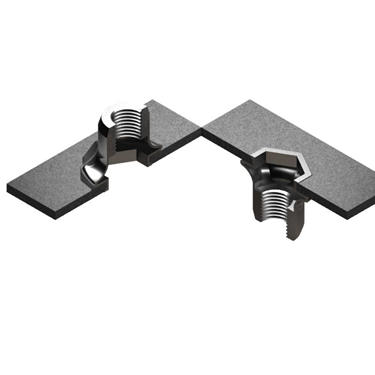

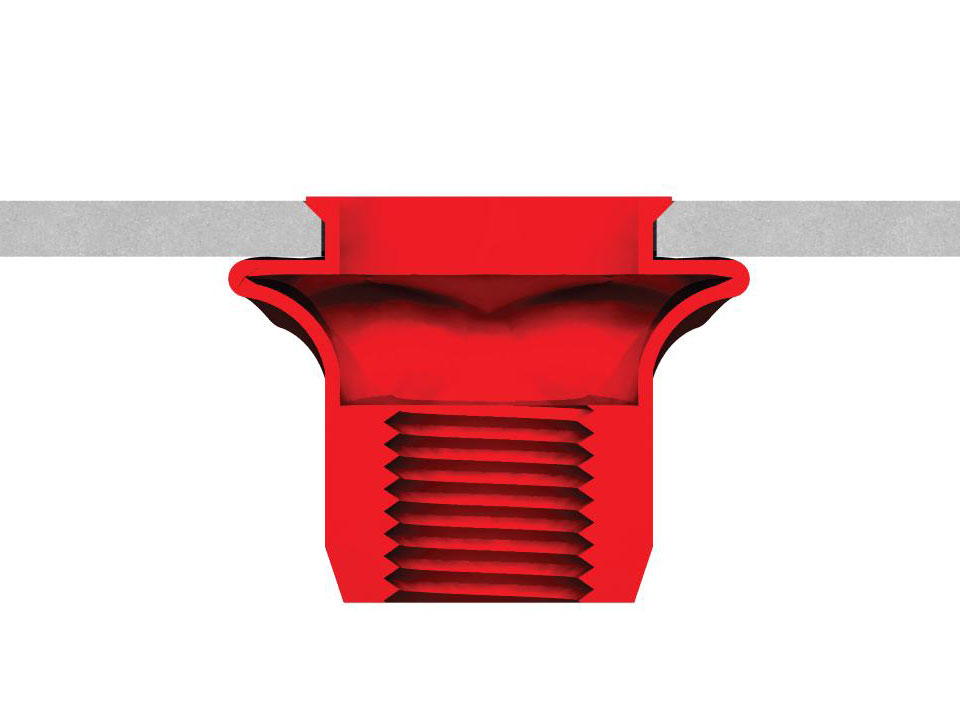

Half hexagon reduced head rivets nuts have higher tensile and tear values than other rivet models. It can be used in applications where resistance to high forces is desired. M3 – M12 lengths produced in half hexagonal rivets can be applied even to thin sheets of 0.5mm thickness. Application can be easily done with rivet tools.
SCOPE OF APPLICATION
- AUTOMOTIVE
- HOUSEHOLD APPLIANCES
- ELECTRICITY
- ELECTRONIC
- FURNITURE
- INDUSTRIAL KITCHEN
|
|
Metric |
|
Hole Size(mm) |
|
| 02.14223.M031200520 |
M3 |
12.0 |
5.0 |
0.5 – 2 |
| 02.14223.M041200520 |
M4 |
6.0 |
| 02.14223.M051300525 |
M5 |
13.0 |
7.0 |
0.5 – 2.5 |
| 02.14223.M061601035 |
M6 |
16.0 |
9.0 |
1 – 3.5 |
| 02.14223.M081751035 |
M8 |
17.5 |
11.0 |
| 02.14223.M102101040 |
M10 |
21.0 |
13.0 |
1 – 4 |
| 02.14223.M122301040 |
M12 |
23.0 |
15.0 |
