Onurfix offers the ideal solution for high-quality, thin-plate, load-resistant bonding applications. It provides fast and reliable application without the need for reprocessing and without damaging the base material. It can be used safely even in painted materials with access from one side. Stainless Nut Rivet has many benefits to weld nuts compared to nuts and bolts:

• Single side mounting
• Low cost application
• Reliable and secure connection
• Easy to use in punched, pressed parts
• Does not damage the surface coating
• Low labor requirements and low waste
• Compliance with automation



FEATURES AND BENEFITS

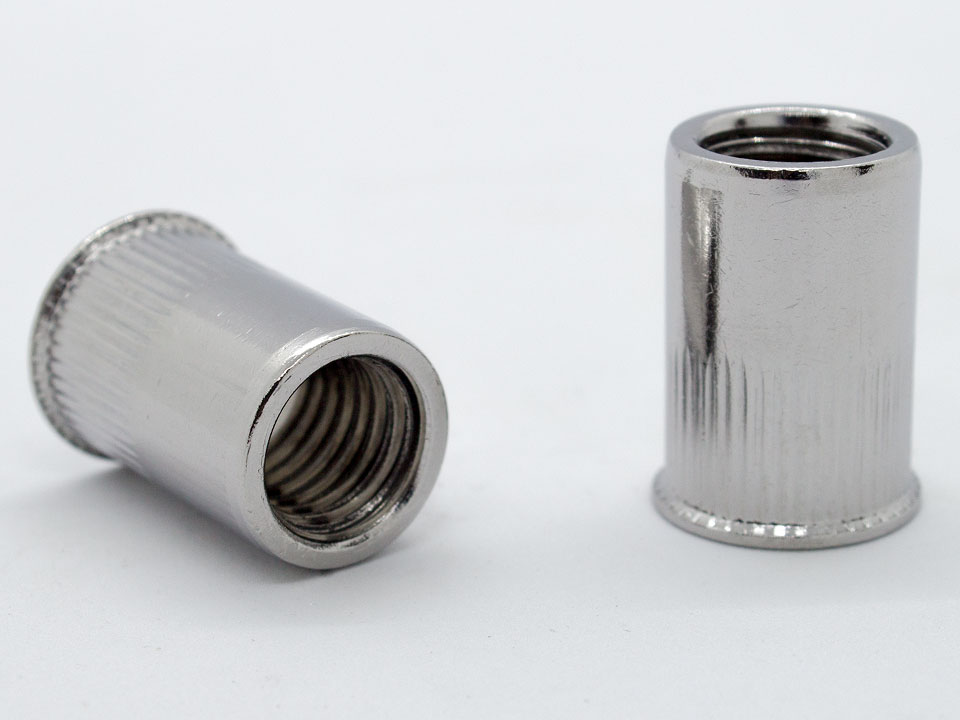

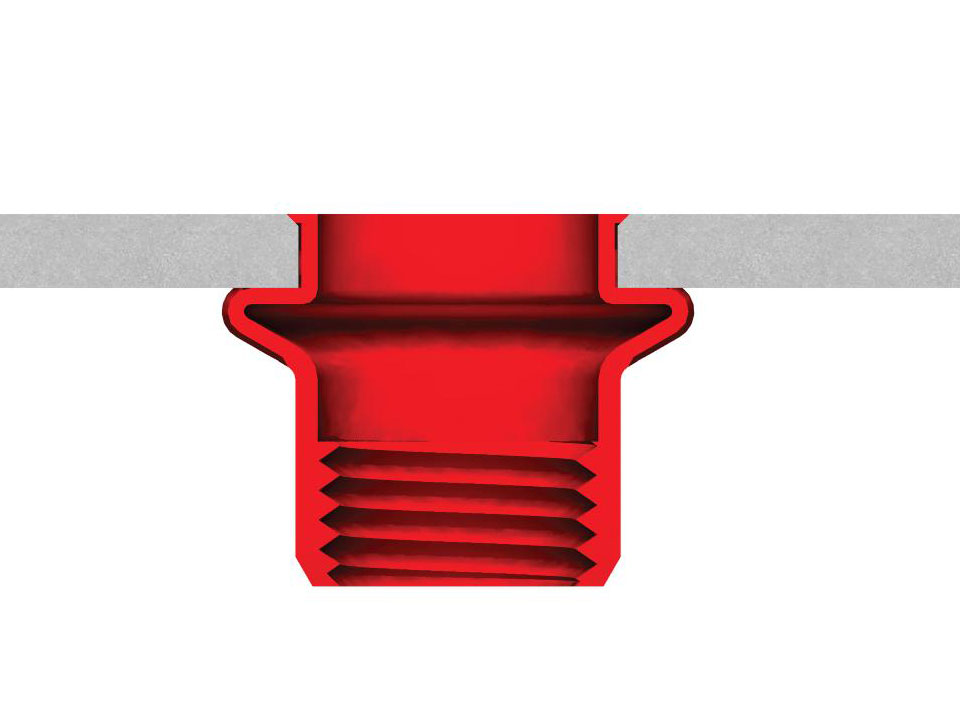

Suitable for use on thin sheets starting from 0.50 mm and can be applied. With a wide clamping range, it is ideal for use on sheets from 0.5 mm to 6.5 mm. Better connection can be achieved with the knurled body. The rivet assortment with zero head stainless nut enables the assembly of materials closer to each other without the need for a special process, and the nut rivet assortment increases the breaking performance and carries more load.

SCOPE OF APPLICATION

• Automotive
• Household appliances
• Electrical engineering
• Home Appliances
• General Lighting Applications

Serial Number	Metric	Length(mm)	Hole Size(mm)	Grip Range(mm)
02.11321.M030900520	M3	9.0	5.0	0.5 – 2
02.11321.M041050520	M4	10.5	6.0
02.11321.M051150520	M5	11.5	7.0
02.11321.M061500530	M6	15.0	9.0	0.5 – 3
02.11321.M081700530	M8	17.0	11.0
02.11321.M101950835	M10	19.5	13.0	0.8 – 3.5
02.11321.M122401040	M12	24.0	15.0	1 – 4
