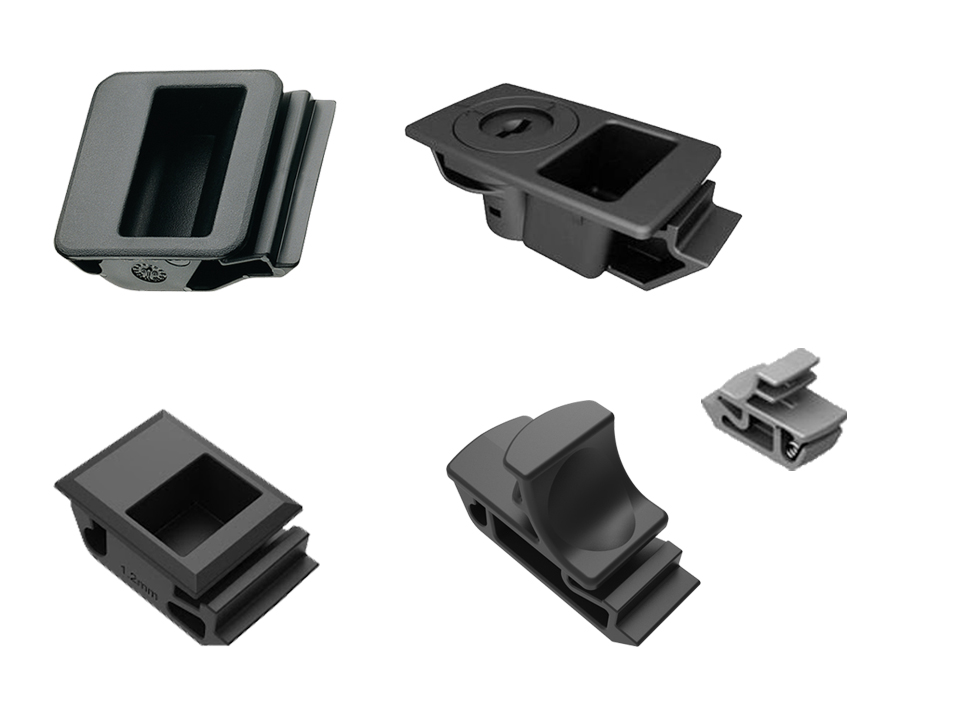

All of these molded-plastic slide latches provide a low installed cost, plus convenient installation and operation, with differences in the size and grip style of each latch designed to suit individual applications. All offer snap-in installation in a single rectangular hole, and all use a simple sliding action to open.
Choose slide latch style and size according to your application dimensions. Molded-in tabs are used to grip the appropriate sheet metal thickness.
- Slide latch to open, simply push panel to close
- Corrosion-resistant materials, including stainless steel springs to hold latches in closed position
- Sheet metal panel thickness and total grip tolerance determine slide latch style and size
- Latches with integrated lockplug housing are available with or without keylocking option for added security
Available Options
- Large-size (Series 99) flush style slide latch is available with a deeper cup for better finger grip
- Locking style latches offer up to 50 different keycode options
Standards and Specifications
- Flammability Rating: UL94-HB or UL94-V0, according to style
- Maximum working loads vary by product style and size, from 25 N (5 lbs.) to 220 N 50 lbs.)
Industry Applications
- Automotive, Passenger Vehicles, Trucks
- Appliance
- Computers
- Construction Equipment, Off-Highway Vehicles, Farm Equipment
- Electronic Enclosures
- Industrial Enclosures
- Industrial Machinery, Machine Tools, Metal Cutting
- Medical
- Networking
