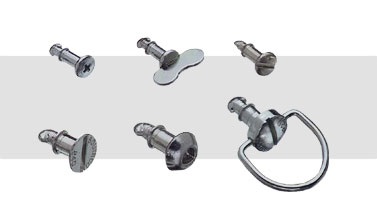

The simplicity of a quarter turn is all that is needed to quickly and easily secure the panels with these versatile small fasteners. Multiple head styles, stud lengths, hopper styles and accessories provide flexibility to meet many specific assembly requirements. These space-saving fasteners ensure precise alignment within a defined holding limit of 0.5 mm (0.02 in) for the correct positioning of the panels. This creates a good solution for sheet metal applications where the dimensions are fixed. Fasteners of 0.5 mm (.02) stud length increases to provide the opportunity for the exact fit of the application. Integrate three different component selections (stud, holder and housing) to suit application requirements. (To determine the length of the stud shaft, first select the hopper.)
STANDARDS AND FEATURES
Built-in retention features hold fastener hardware with panel and frame, eliminating dropped or missing components
Various head styles provide options for manual operation or restricted access to the vehicle
Each connector provides some spring movement for a comfortable fit
Numerous corrosion-resistant components
Also available in stainless steel constructions
Stainless, nylon and snap stud holders
Shielded sockets provide RFI-EMI protection
Numerous accessories and installation tools increase the advantages of quick-connect fastening
Specific hardware components and dimensions determine maximum operating load
SCOPE OF APPLICATION
- Aviation
- Automotive – Trucks
- Computers
- Construction Machinery & Highway Vehicles (Agricultural Equipment)
- Electronic Housings
- Exhibitions / Signs
- Food Equipment
- Furniture
- HVAC
- Industrial Enclosures
- Lawn Mowers
- Medical
- Networking
